CASE STUDY: OBJECT-ORIENTED STOCK PORTFOLIO & LEDGER SYSTEM

Role: Solo Backend Engineer

Context: ASU IFT210 Capstone (Scored 100/100)

Stack: Java 100% (Console CLI / Eclipse IDE)

📌 PROJECT OVERVIEW

Developed as the capstone final project for Arizona State University's IFT210 course, this desktop application simulates a real-world financial brokerage account. The system allows users to execute simulated investments while maintaining a strictly validated transactional history ledger that matches complex multi-action banking criteria.

🏗️ TECHNICAL ARCHITECTURE & DESIGN PATTERNS

The architecture isolates data state mutation by splitting logic into two core classes to ensure strict data boundaries:

• TransactionHistory.java: A tightly encapsulated entity model using private fields (ticker, transDate, transType, qty, costBasis). State access is strictly funneled through explicit getters and setters.
• PortfolioManager.java: The core application execution engine managing the global runtime loop, interface strings, validation steps, and system memory state.

The data layer utilizes a strict entity blueprint ensuring safe object instantiation through default and overloaded constructor state controls:

• Default Constructor: Enforces safe fallback initialization states and sets the default CASH unit valuation to 1.00 per rubric mandate.
• Overloaded Constructor: Used directly by the execution engine for dynamic ledger instantiation when recording new events.

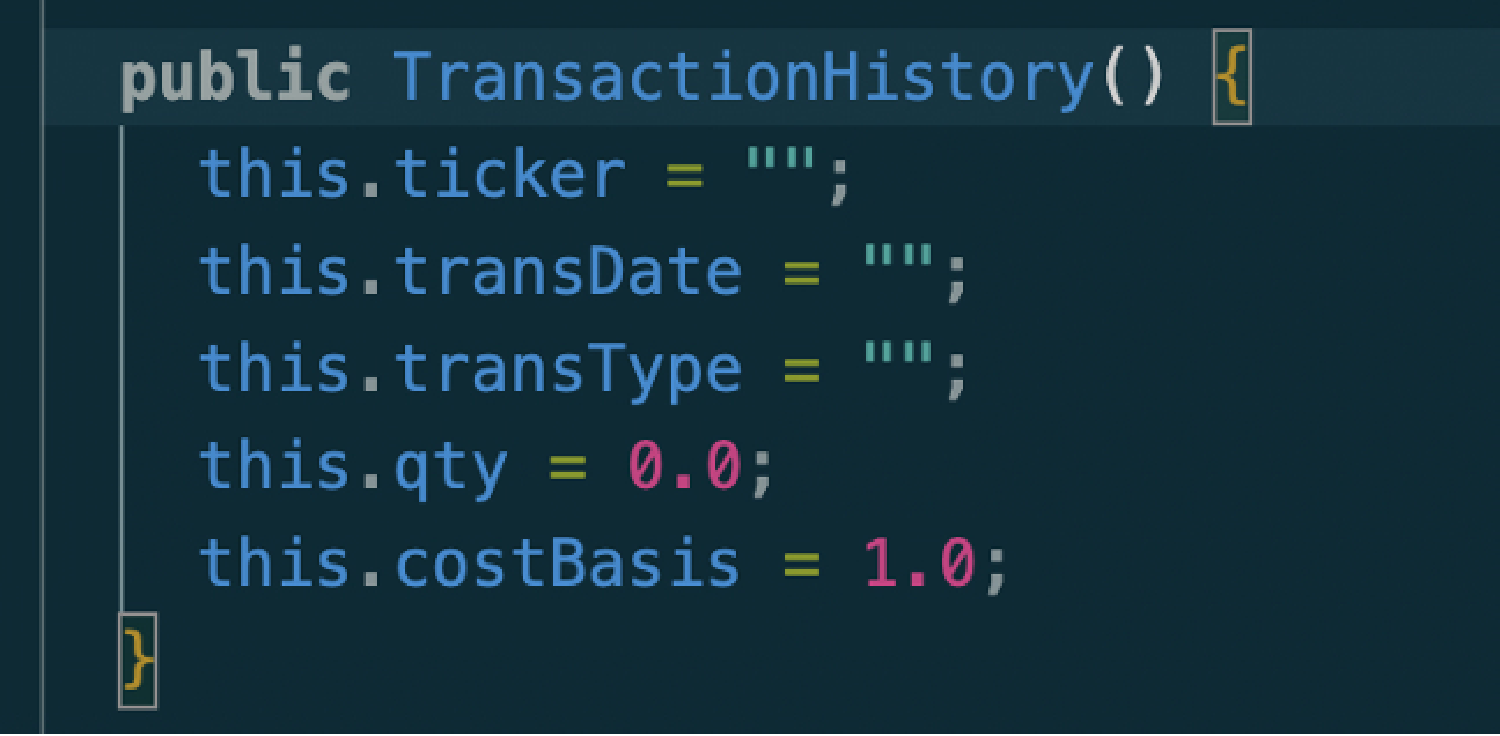

Figure 1: Encapsulated TransactionHistory constructor implementation.

To simulate actual financial compliance standards, a single investment choice triggers a dual-entry transaction pairing mechanism. Buying or selling an asset does not just change an array value; it generates two distinct atomic objects concurrently inside a unified ArrayList<TransactionHistory> collection to preserve absolute data integrity:

• Asset Leg: Records the equity modification (e.g., Ticker: DFEN, Type: BUY, Qty: 100.0, Cost Basis: 15.0).
• Liquidity Leg: Automatically computes the total capital offset and logs the secondary opposing cash movement (e.g., Ticker: CASH, Type: WITHDRAW, Qty: -1500.0, Cost Basis: 1.00).

Figure 2: Automated dual-entry execution pairing mechanics.

⚙️ KEY ENGINEERING CHALLENGES & SOLUTIONS

The system implements strict validation guardrails inside the application loop before allowing state mutations, meeting exact production-grade requirements:

• Liquidity Guard: Before processing a stock purchase, the engine iterates through the dynamic ledger history to compute cumulative cash positions, blocking transactions if available liquidity cannot cover the total asset cost.
• Overdraft Interception: Capital withdrawals are benchmarked against current cash holdings. Malformed withdrawals are denied with explicit user-facing messages rather than allowing negative cash anomalies.
• Asset Ownership Verification: Prevented users from short-selling assets they do not hold by validating the portfolio's active keys and quantity limits before allowing liquidations.

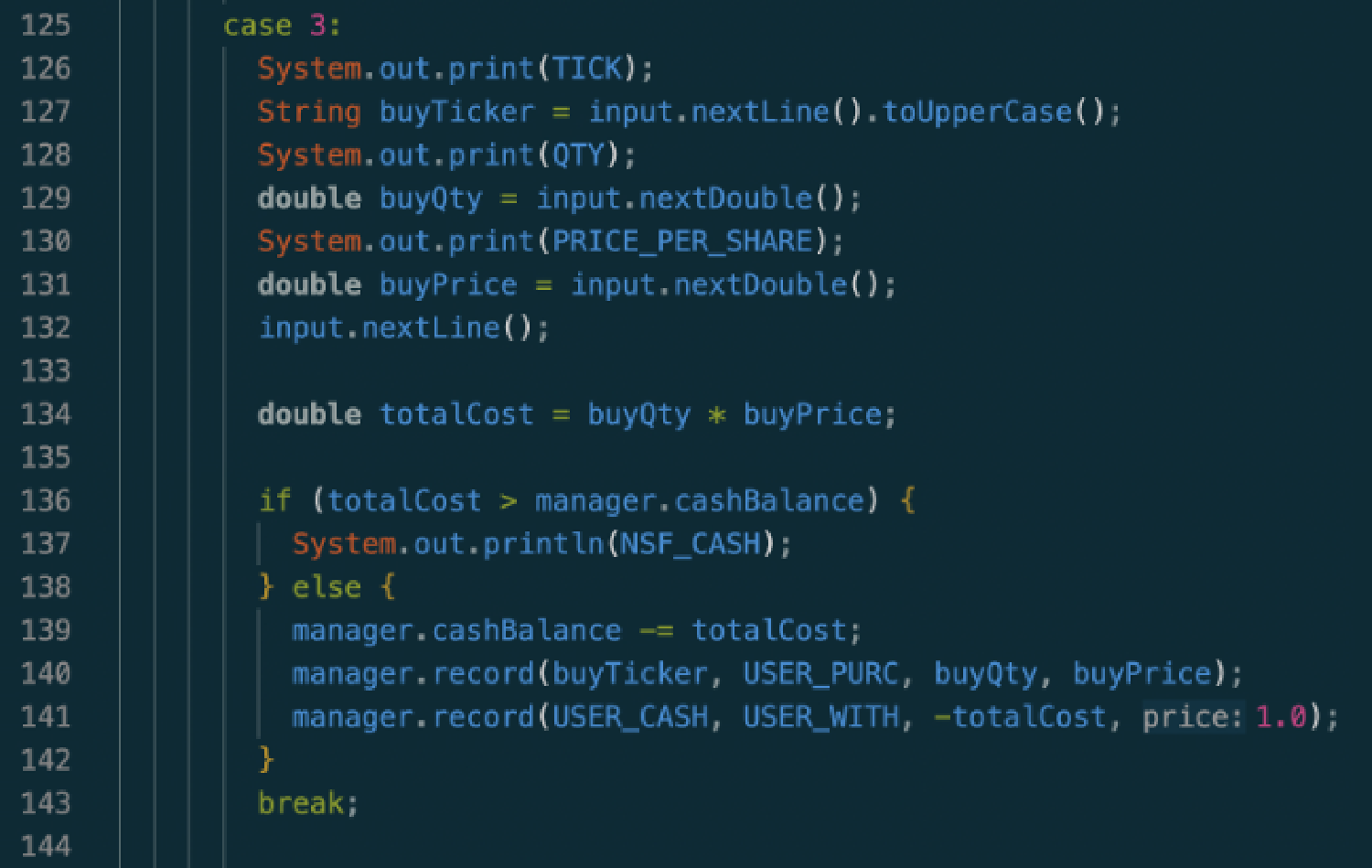

Figure 3: Runtime asset validation and mathematical guardrails.

Instead of maintaining a fragile, static, or hardcoded list of asset variables, the engine processes the full historical ledger stream into a live state snapshot completely on-demand:

• Timeline Replay Logic: Every time menu option 6 is triggered, the system scans every transaction chronologically. If the operation is a SELL, the asset scalar maps into a negative value; if it is a BUY, it maps as positive.
• Dynamic Collapse Strategy (HashMap): The engine dynamically combines duplicate keys on the fly using a Java HashMap and the .getOrDefault() method. It calculates the live adjusted cost basis and actively hides completely liquidated or zero-balance tickers to ensure a perfectly clean profile layout.

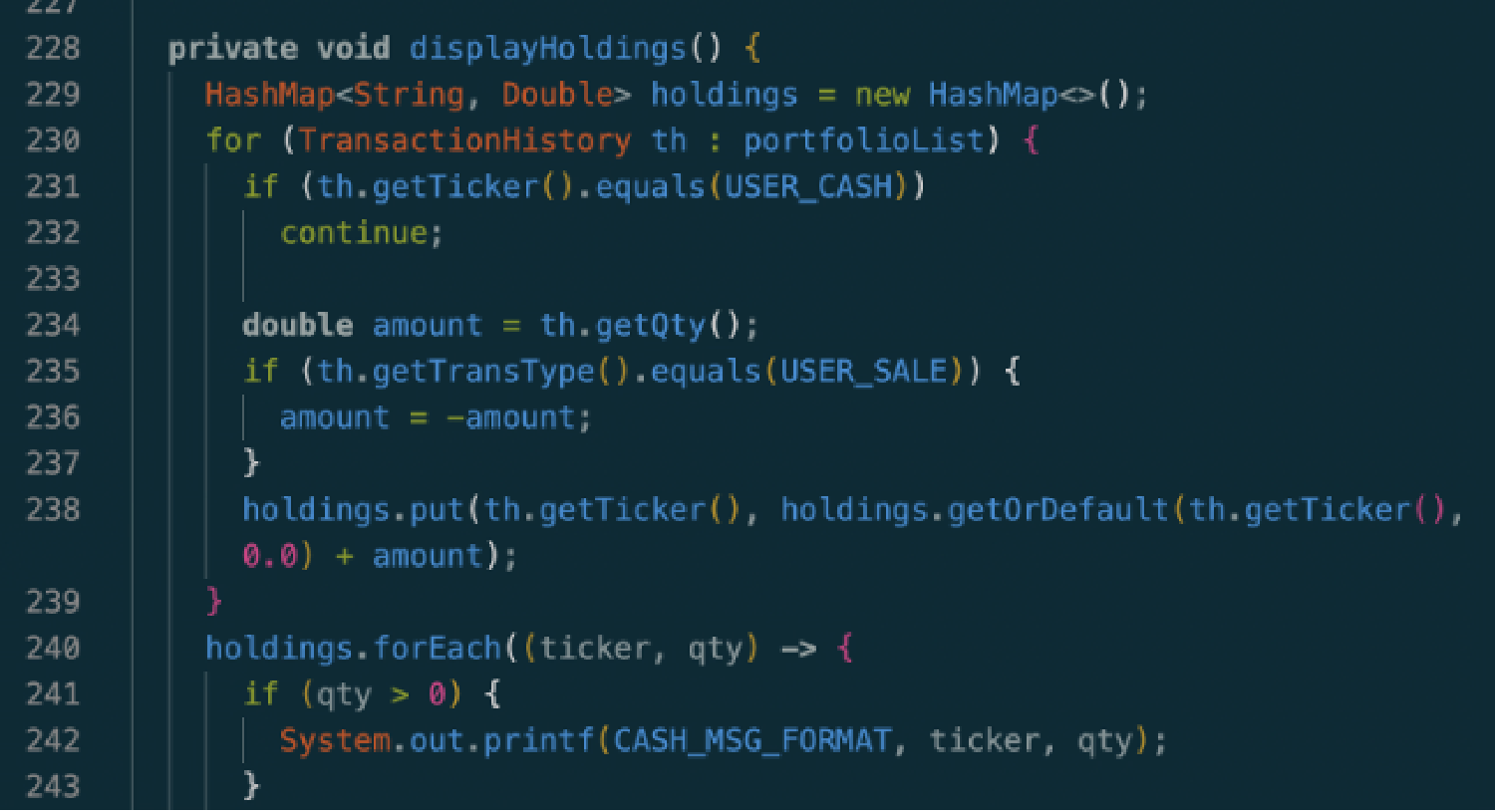

Figure 4: HashMap timeline data array reduction logic.

💻 SYSTEM EXECUTION & INTERFACE

The interface utilizes well-spaced text matrices to construct an organized, human-readable menu layout that handles input selection cleanly while intercepting non-integer data types smoothly.

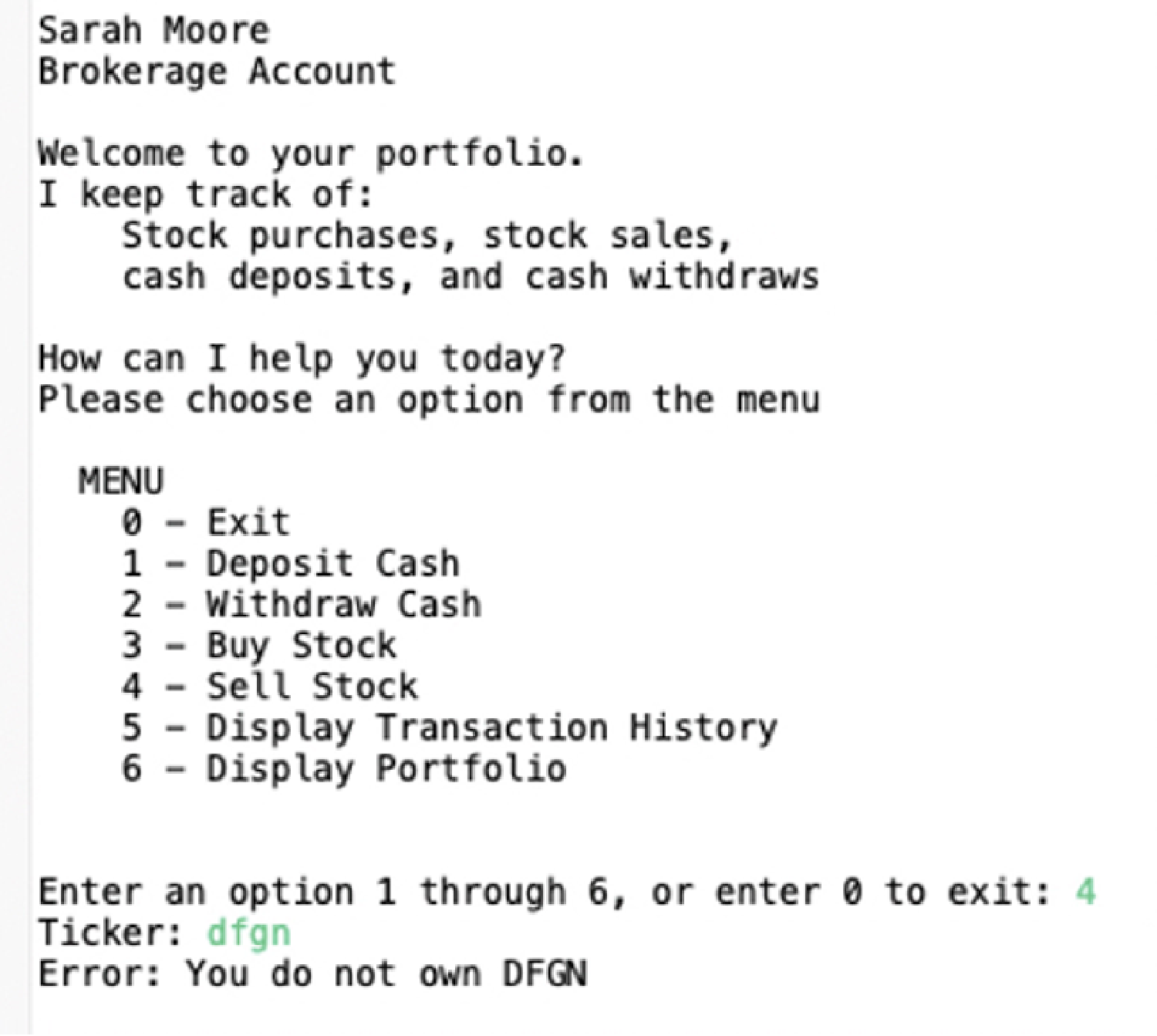

Figure 5: User command interface and input handling menu layout.

The system outputs a tabular stream of raw data arrays, aligning columns dynamically with standard padding to guarantee clear visual hierarchy.

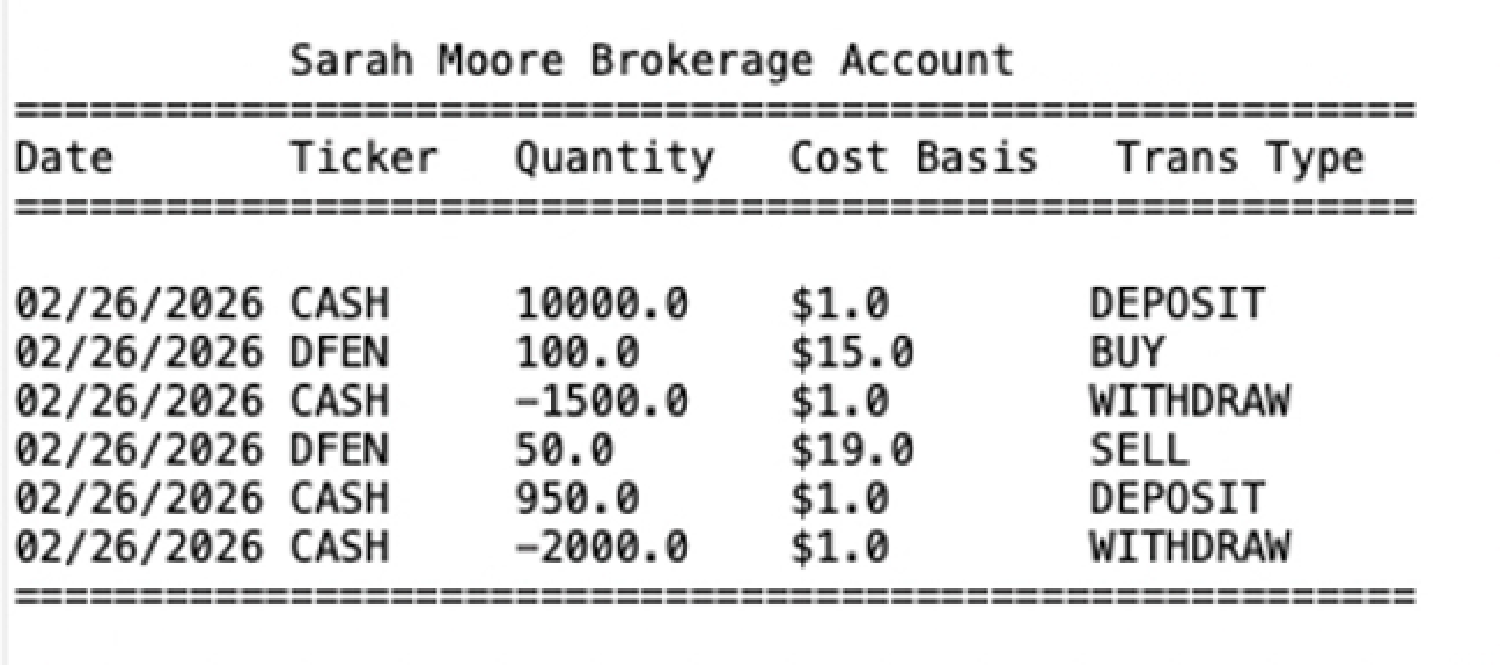

Figure 6: Formatted transactional tables stream and audit trails snapshot outputs.

🚀 KEY TAKEAWAYS & ENGINEERING GROWTH

• Financial State Patterns: Mastered dual-entry ledger logic and audit trails within an Object-Oriented environment.
• Algorithmic Reduction: Learned how to process a raw transaction history queue to generate a clean, real-time snapshot of current user assets.
• Defensive Engineering: Developed strong instincts for validation layers, type-checking, input filtering, and safe edge-case handling.
